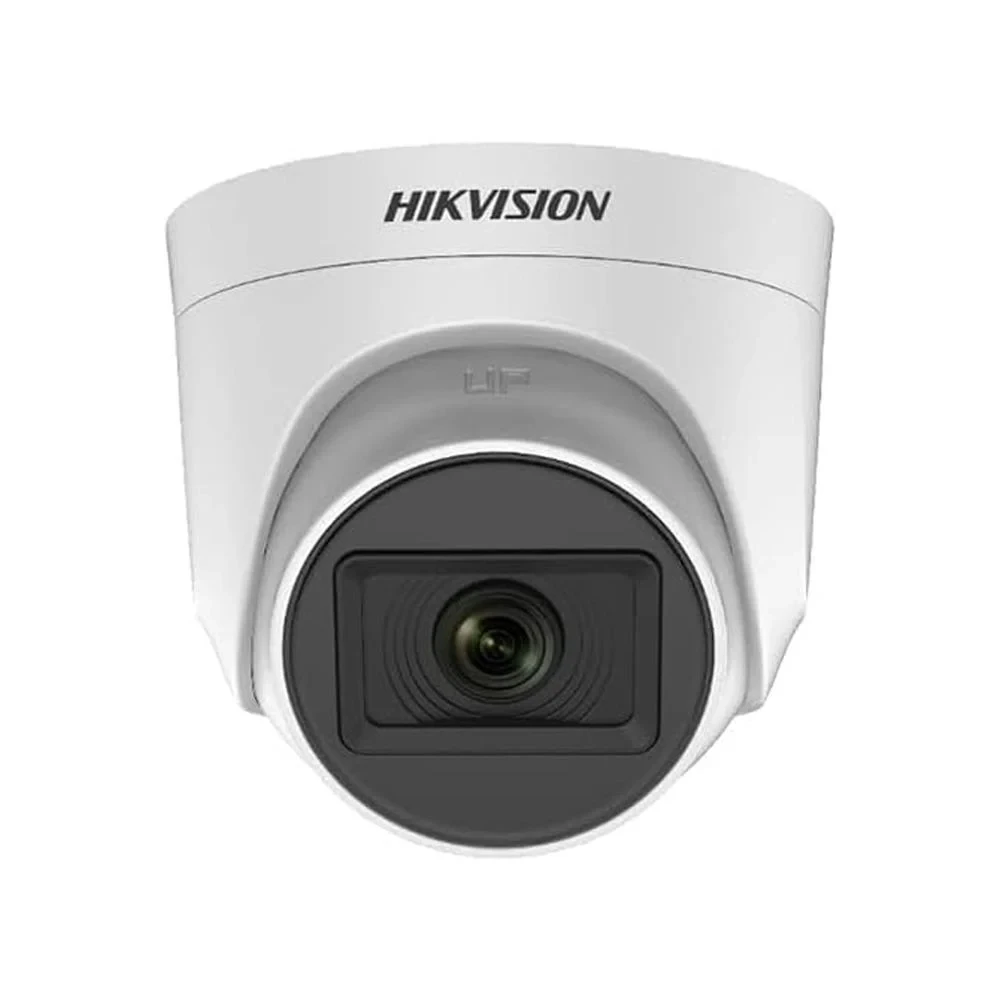

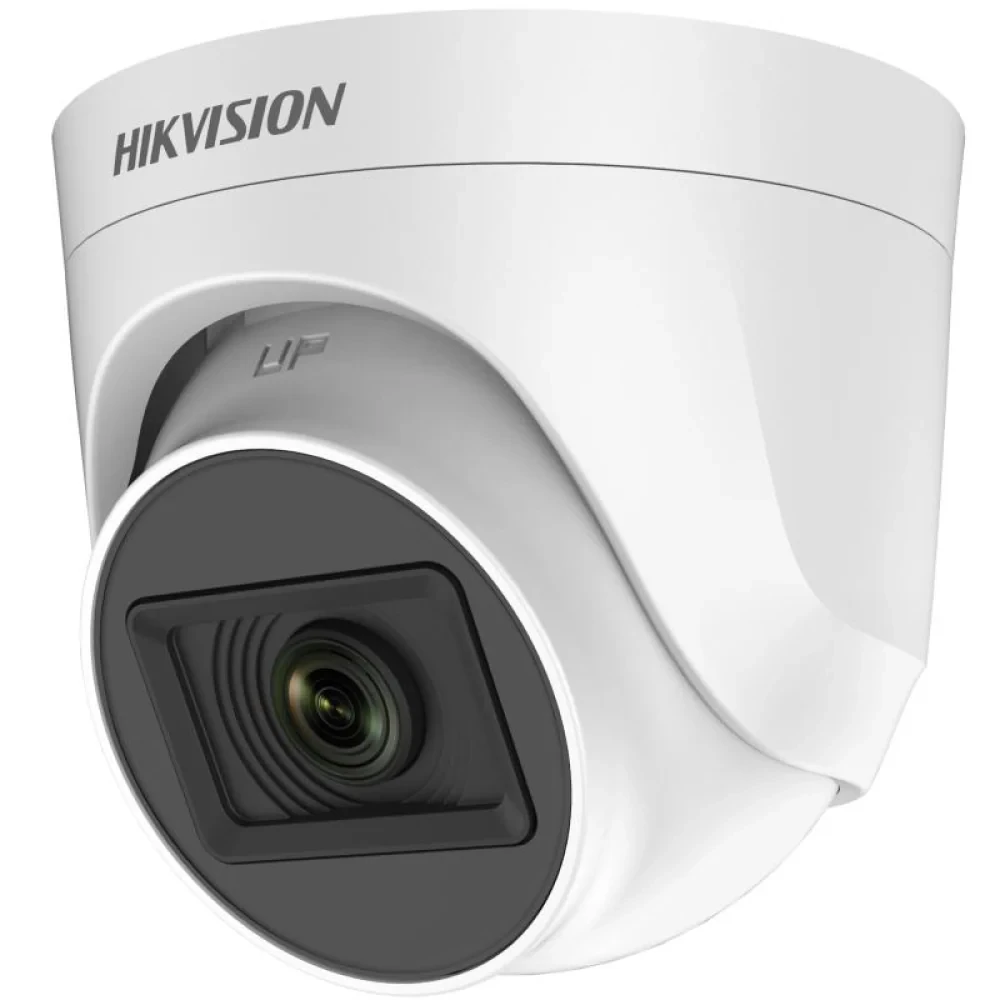

K Indoor Fixed Turret Camera

1. 8 MP turret camera
2. EXIR 2.0: advanced infrared technology with 30 m IR distance
3. 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
4.
5.

6.
7.

8.
9.

10.
11.

12.
13.


Available models:

DS-2CE76U1T-ITPF(2.8mm)

DS-2CE76U1T-ITPF(3.6mm)

Product Data

1. Camera
2. Image Sensor8.29 megapixel progressive scan CMOS
3. Max. Resolution3840 (H) × 2160 (V)
4. Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
5. Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
6. Day & NightIR Cut Filter
7. Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
8. Signal SystemPAL/NTSC
9. Lens
10. Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
11. Focal Length & FOVHorizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
12. Lens MountM16
13. Illuminator
14. Supplement Light TypeIR
15. Supplement Light RangeUp to 30 m
16. Smart Supplement LightYes
17. Image
18. Image SettingsBrightness;Sharpness;AGC
19. Frame Rate
20. TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
21. CVI: 8MP@12.5fps, 8MP@15fps
22. AHD: 8M@12.5fps, 8M@15fps
23. CVBS: 960H P/N
24. Day/Night ModeAuto/Color/BW (Black and White)
25. Wide Dynamic Range (WDR)Digital WDR
26. Image EnhancementBLC;HLC
27. Noise Reduction2D DNR
28. White BalanceAuto/Manual
29. Interface
30. Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
31. General
32. Power
33. 12 VDC ±25%, max. 5.3 W
34. *You are recommended to use one power adapter to supply the power for one camera.
35. MaterialPlastic
36. Dimension? 70 mm × 159.8 mm (? 2.76" × 6.29" )
37. Approx. 180 g (0.40 lb.)
38. Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
39. CommunicationHIKVISION-C
40. LanguageEnglish

,

1. Image Sensor8.29 megapixel progressive scan CMOS
2. Max. Resolution3840 (H) × 2160 (V)
3. Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
4. Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
5. Day & NightIR Cut Filter
6. Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
7. Signal SystemPAL/NTSC

,

1. Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
2. Focal Length & FOVHorizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
3. Lens MountM16

,

1. Supplement Light TypeIR
2. Supplement Light RangeUp to 30 m
3. Smart Supplement LightYes

,

1. Image SettingsBrightness;Sharpness;AGC
2. Frame Rate
3. TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
4. CVI: 8MP@12.5fps, 8MP@15fps
5. AHD: 8M@12.5fps, 8M@15fps
6. CVBS: 960H P/N
7. Day/Night ModeAuto/Color/BW (Black and White)
8. Wide Dynamic Range (WDR)Digital WDR
9. Image EnhancementBLC;HLC
10. Noise Reduction2D DNR
11. White BalanceAuto/Manual

,

1. Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS

,

1. Power
2. 12 VDC ±25%, max. 5.3 W
3. *You are recommended to use one power adapter to supply the power for one camera.
4. MaterialPlastic
5. Dimension? 70 mm × 159.8 mm (? 2.76" × 6.29" )
6. Approx. 180 g (0.40 lb.)
7. Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
8. CommunicationHIKVISION-C
9. LanguageEnglish
